OUTDOOR LIGHTING

We offer a comprehensive product portfolio for almost any outdoor area. Our energy-efficient and extremely powerful LEDs reliably provide ideal visual conditions.
Enormous savings potential lies in sound lighting design and the choice of the required beam angle. Optics and their beam characteristics ensure the best possible and needs-optimised illumination without unnecessary glare of the surroundings.

Customer project outdoor lighting

The following is an example of a greenius® outdoor lighting project:

Our task was to plan and convert our client’s entire outdoor lighting to LED technology – at a height of 23m. See for yourself.

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Radiation characteristics

Probably the most important advantage of modern LED lighting technology over conventional lighting is the possibility of directing the light by means of optics and directing it to where the light is actually needed.

A positive side effect: if the light is directed sensibly, the lighting installation requires considerably less luminosity (lumens) – and thus also less energy!

When implementing lighting projects, it is therefore primarily a matter of determining the optimal beam characteristics – lumens and efficiency play a subordinate role for the time being.

Aussenbeleuchtung

Presentation

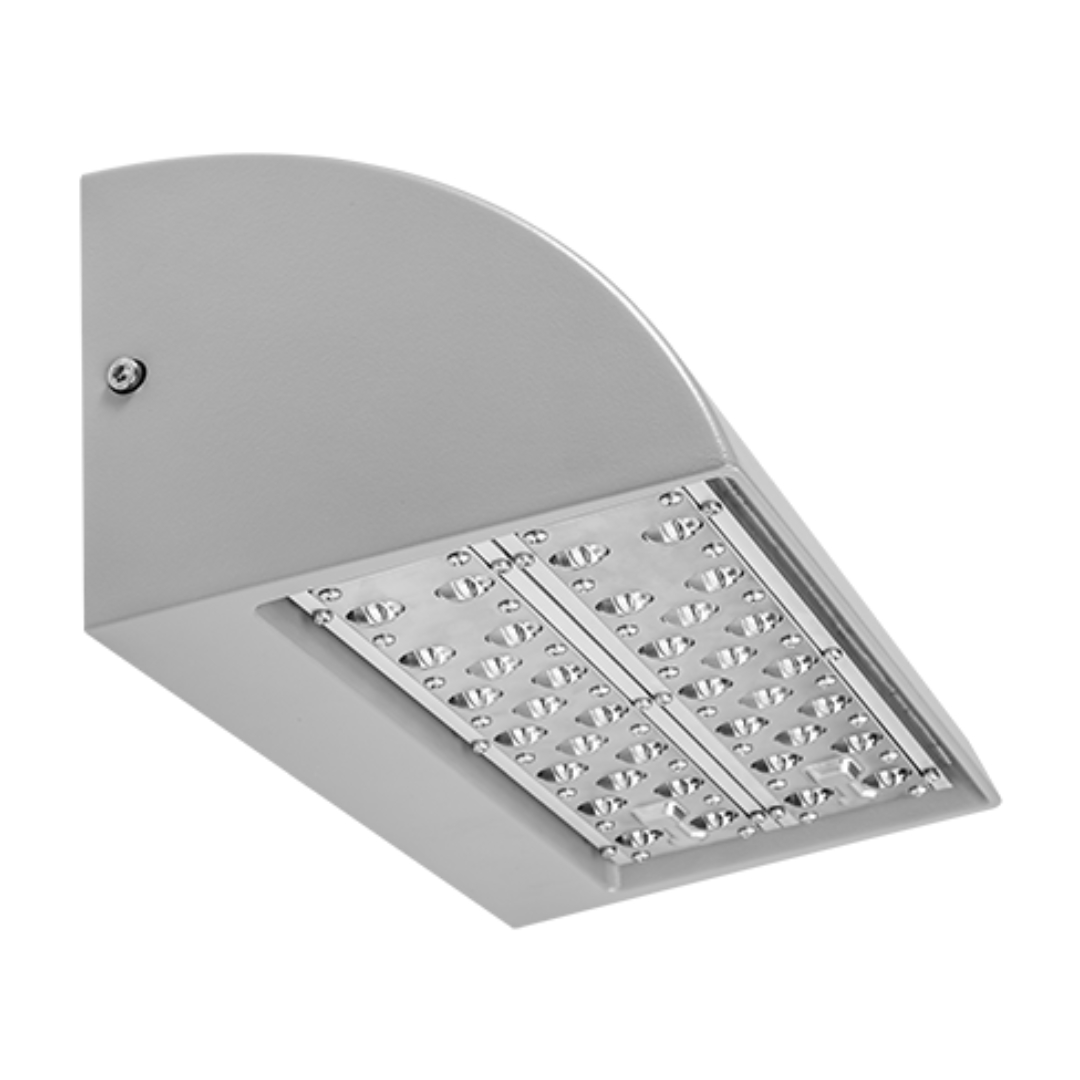

The following example shows a street scene that is illuminated using a 40 W AREA series spotlight at a mounting height of 8 metres and a wide-beam T4M1 optic.

The luminous intensity distribution curve (LVK) uses lines to show the expected light distribution (beam pattern).

The illustrations of the lighting design provide information on light development, luminous intensity and light distribution. In the false-colour representation, the lux values can be read off in concrete terms. This is important, e.g. for compliance with the lighting requirements of the workplace guidelines (ASR).

Luminous intensity distribution curve T4M1 (LVK)
Planning view
View in illumination mode
False colour display (lux ranges)

The beam angle

FLEX-Series

Click through the overview of our selected optics and learn more about the corresponding radiation characteristics. Switch on the lighting and, if you wish, additionally “a thermal image” with the false colour display for lux evaluation.

Of course, we will be happy to assist you in choosing the optimal beam angle for your lighting project.

Sports field lighting

Uniform and glare-free illumination of sports fields is often achieved diametrically by strongly focused light with light point heights of 12-16 metres. Here, acute beam angles are used.
